Decorator Series

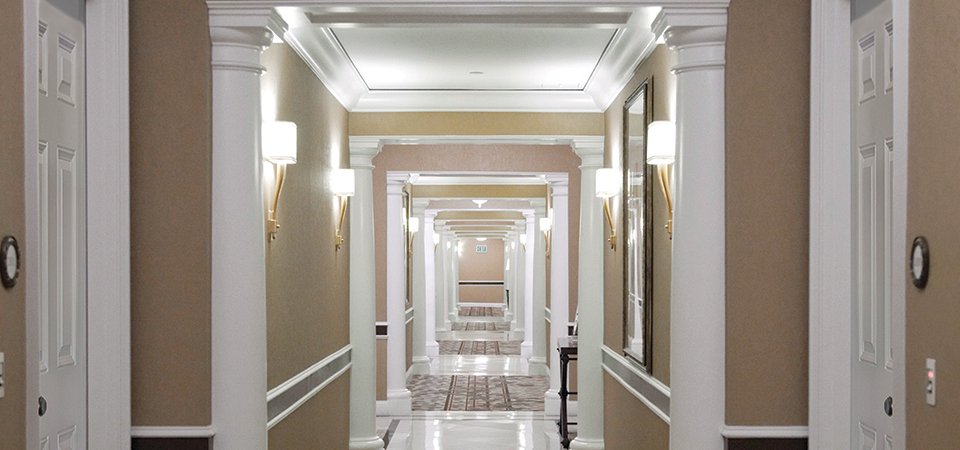

Daybar’s Decorator Series doors blend the proven strength and durability of commercial hollow metal doors with architectural aesthetics of embossed panel steel. Unlike most embossed doors, which use wood stiles and wood block reinforcing, Daybar Decorator Series doors are composed of 18 gauge galvanneal steel — ideal for commercial offices, hotels, or high-end residential areas.

Cores
Designs
Specifications
Downloads

Rigid Polystyrene

R-value 6.6

STC rating 34

Temperature Rise

Inorganic based composite; woven fiberglass both sides

R-value: 3.25

STC 35

2 Panel

Narrow 6 Panel

Standard 6 Panel CE

8 Panel

Crossbuck

Decorator Series Door Specifications

Sizes: Height - 6/8 or 7/0. Width - 2/6 to 3/0.

Material: A40, 18 gauge galvanized steel.

Core: Standard rigid polystyrene; STC rating 34; R-value 6.60.

Optional - Temperature Rise Rated Core: Patented, composite fire door core with excellent surface adhesion and mechanical strength. STC 35; R-value: 3.25

Closer Reinforcement: 14 gauge closer reinforcement, fitted to 16 gauge inverted top channel.

Hinge Preparation: 1-1/2" pairs standard or heavyweight 4-1/2" high template hinges.

Hinge Reinforcement: 8 gauge hinge reinforcement for standard or heavyweight 4 1/2" high template butt hinges.

Strike Preparation: 14 gauge reinforcement prepared for 2 3/4" backset.

Lock Preparation: ANSI A115.2 #161 Lock Reinforcement – 14 gauge prepared for 2 3/4" back-set; ANSI A115.1 Mortise Lock Reinforcement, 14 gauge with lock guide; Rim Panic Exit Hardware Reinforcement – 14 gauge (includes reinforcement for surface vertical rod or bolts).

Fabrication: Lock seam and beveled edge; mechanically interlocking seams on door edges only.

Primer: G90 zinc coating available.

Fire Rating: Maximum 3 hours. No glass preparation allowed.
Glazing limitations placed on fire labelled doors = 3/4 Hour.
Maximum 1296 square inches per lite; maximum linear dimension = 54".

Warranty: 1 year limited

Decorator Series Door Components

A. 14 gauge closer reinforcement fitted to 16 gauge inverted top channel.

B. Rigid polystyrene core.

C. 8 gauge hinge reinforcement for standard weight or heavy weight 4-1/2" high template butt hinges.

D. ANSI A115.1 #86 - 14 gauge reinforcement with lock guide D & T for #12-24 screw.

D. ANSI A115.2 #161 - 14 gauge reinforcement, 2-3/4" backset D & T for #8-32 screw.

D. 14 gauge rim panic reinforcement (includes reinforcement for surface vertical rod or surface bolts).

E. 1/8-inch in 2" bevelled edges with lock seam design.

F. 16 gauge inverted bottom channel.

G. Typical profile through embossment (crossview).

See Downloads tab for additional information.

What is Daybar Quality?

Daybar quality is built on 35 years of manufacturing experience, broad fire and physical endurance certification capabilities and the best warranty program available in the industry.
