Advocate AV-Series

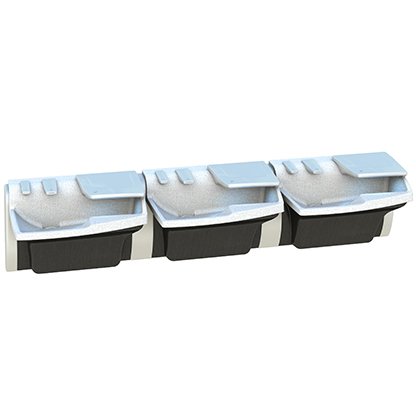

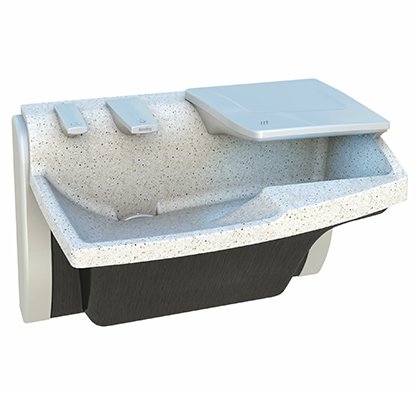

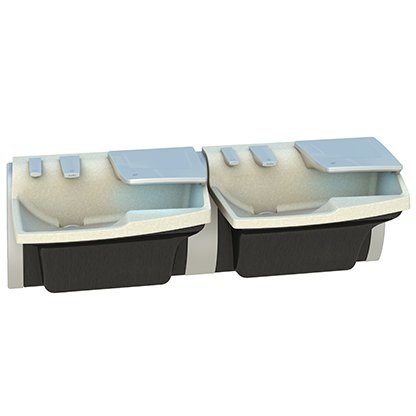

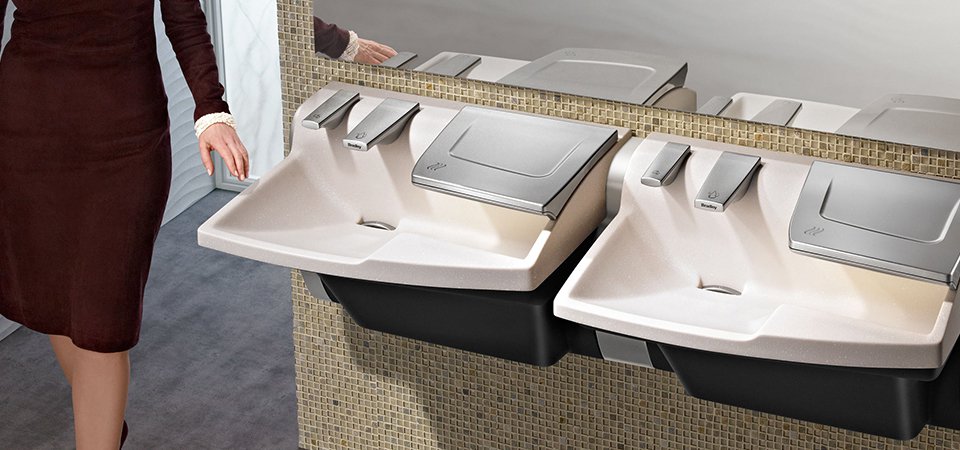

Bradley Advocate Lavatory System

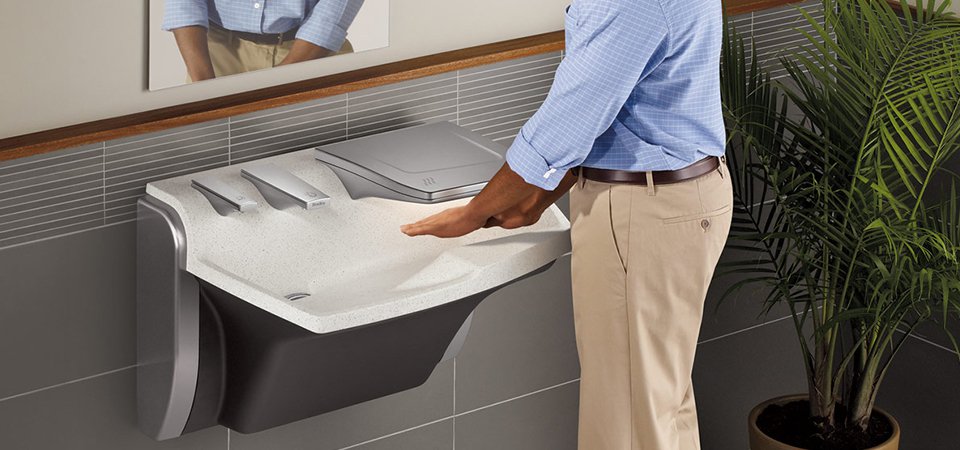

The Advocate Lavatory System’s unique all-in-one design allows users to access soap, water and hand dryer without leaving the hand washing station. The water supply, soap dispenser, and hand dryer are located above the bowl. GFI protection assures the safety of the hand dryer equipment. The Bradley Advocate Lavatory System is perfect for commercial lavatories, movie theaters, auditoriums, retail, travel plazas, airports and convenience shops.

• Soap, water and hand dryer, unique all-in-one patent pending design
• Includes infrared, high speed, dual-sided hand dryer at each hand washing station
• Includes large capacity, top-fill, infrared soap dispenser, with low level indicator and overfill protection
• Includes hygienic hands-free infrared, .38 gpm faucet
• ADA- and ANSI- compliant: Can be mounted at different heights to accommodate hand washing for range of users

With the Advocate®, everything’s within reach for the ultimate in convenience, comfort, and safety.

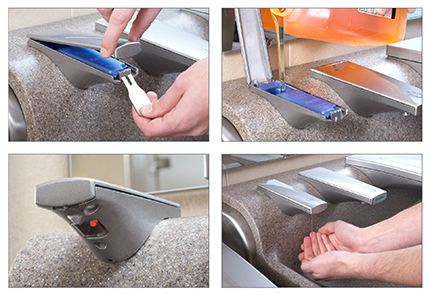

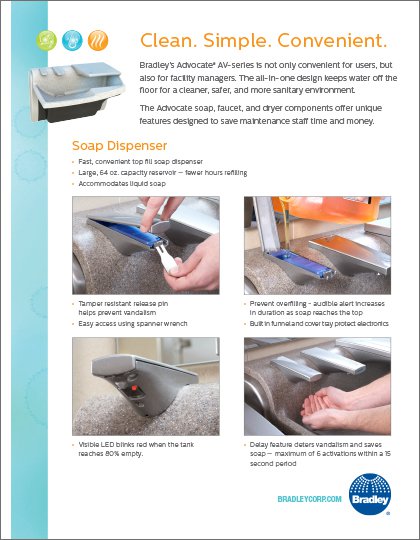

1. Soap

• Touch-free activation
• Extra-large capacity— for fewer refills
• Top fill dispenser—easier to refill, saves time and money
• Low-level LED indicators let maintenance staff know when to refill
• Audible overflow protection

2. Faucet

• Touch-free activation
• 0.38 GPM / 1.4 LPM provides 24% water savings over standard models
• Above deck access to sensors makes maintenance easy

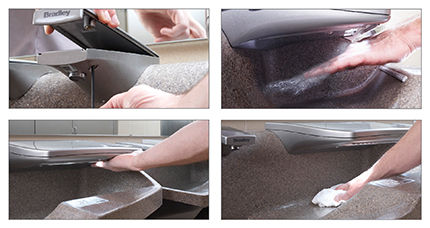

3. Dryer

• Touch-free activation
• Voltages for US and International applications
• Creates safer environment by keeping water off the floor
• Illuminated, ergonomic and dual-sided; dries hands in 15 seconds or less
• Design allows easier access for children and wheelchair users
• Lower noise level than most dryers
• UL certified

4. Basin

• Made from Terreon® solid surface
• Available in 19 colors
• ANSI and GREENGUARD certified
• Easy to clean, maintain, and is field repairable if chipped or scratched

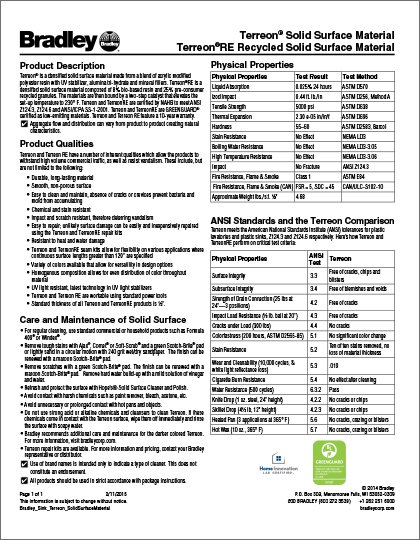

Terreon® / Terreon®RE Recycled Solid Surface Material

• Terreon® is a densified solid surface material made from a blend of acrylic modified polyester resin with UV stabilizer, alumina tri-hydrate and mineral fillers.
• Terreon®RE is a densified solid surface material composed of 8% bio-based resin and 25% pre-consumer recycled granules.

The materials are then bound by a two-step catalyst that elevates the set-up temperature to 230° F. Terreon and TerreonRE are certified by NAHB to meet ANSI Z124.3, Z124.6 and ANSI/ICPA SS-1-2001. Terreon and TerreonRE are GREENGUARD® certified as low-emitting materials. Terreon and Terreon RE feature a 10-year warranty.

* Aggregate flow and distribution can vary from product to product, creating natural characteristics.

Product Qualities

Terreon and Terreon RE have a number of inherent qualities which allow the products to withstand high volume commercial traffic, as well as resist vandalism. These include, but are not limited to the following:

• Durable, long-lasting material
• Smooth, non-porous surface
• Easy to clean and maintain, absence of cracks or crevices prevent bacteria and mold from accumulating
• Chemical and stain resistant
• Impact and scratch resistant, therefore deterring vandalism
• Easy to repair; unlikely surface damage can be easily and inexpensively repaired using the Terreon and TerreonRE repair kits
• Resistant to heat and water damage
• Terreon and TerreonRE seam kits allow for flexibility on various applications where continuous surface lengths greater than 120" are specified
• Variety of colors available that allow for versatility in design options
• Homogenous composition allows for even distribution of color throughout material
• UV light resistant, latest technology in UV light stabilizers
• Terreon and Terreon RE are workable using standard power tools
• Standard thickness of all Terreon and TerreonRE products is 1⁄2".
