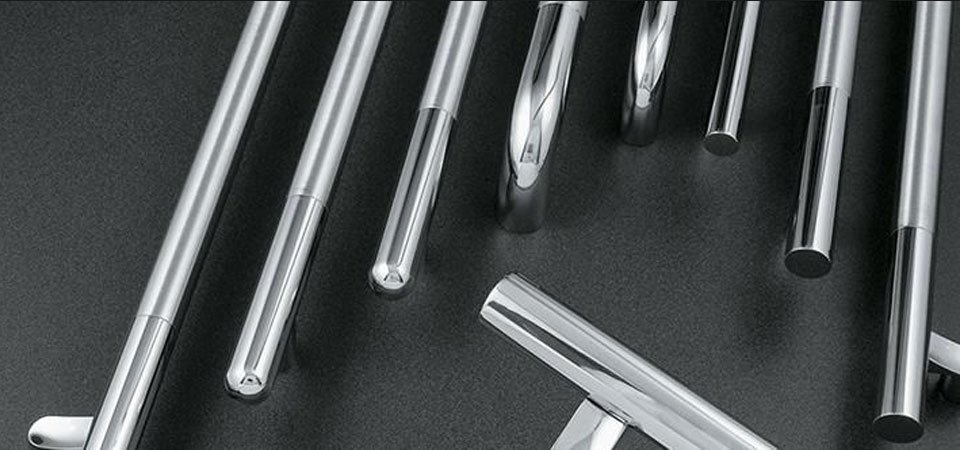

NeoMax Collection

The beauty of long door pulls is enhanced with the contrasting finish system of the NeoMax Collection.

This smart, visually appealing "GripZone" design makes a welcome addition to
any entrance.

Lengths from 3 feet to over 8 feet long
are available, with optional custom
radius bending.

Specify a mid-post on full height pulls, to provide the most rigid grip where heavy doors or high wind loads are present.

Finishes
Designs
Specifications
Downloads

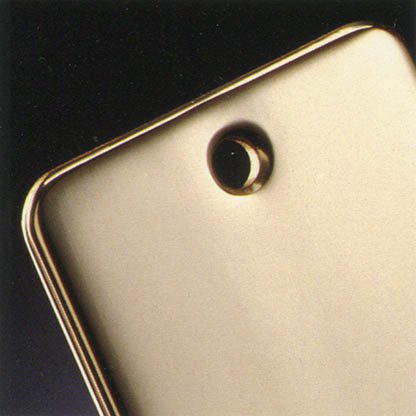

BHMA 605

Bright Brass

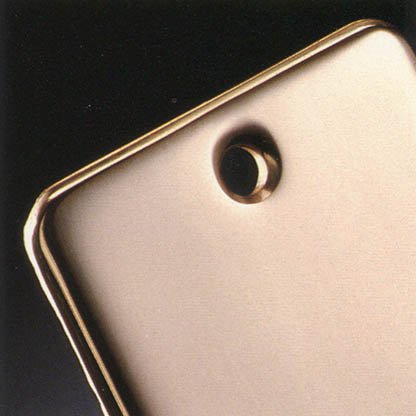

BHMA 611

Bright Bronze

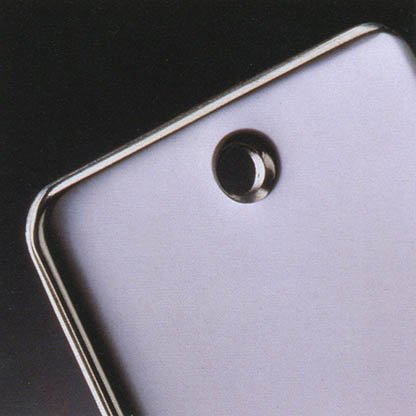

BHMA 629

Bright Stainless Steel

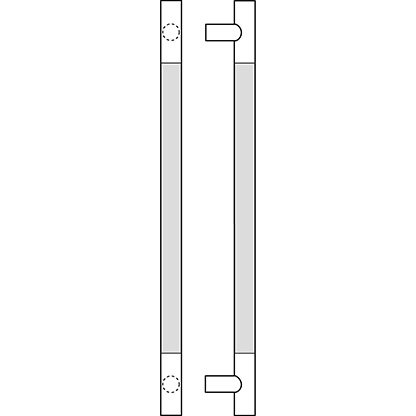

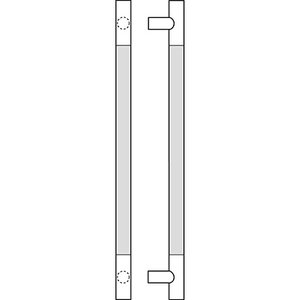

RM3400 - straight pull, square ends

1" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

RM3401 - straight pull, square ends

1-1/4" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

RM3402 - straight pull, square ends

1-1/2" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

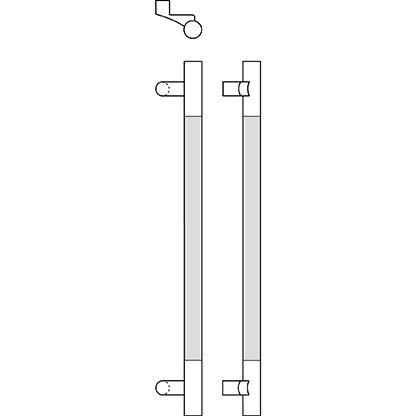

RM3410 - offset pull, square ends

1" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

RM3411 - offset pull, square ends

1-1/4" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

RM3412 - offset pull, square ends

1-1/2" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

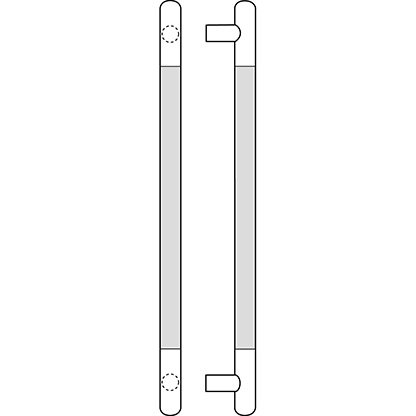

RM3420 - straight pull, round ends

1" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

RM3421 - straight pull, round ends

1-1/4" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

RM3422 - straight pull, round ends

1-1/2" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

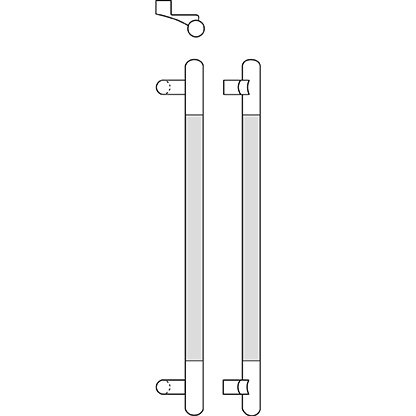

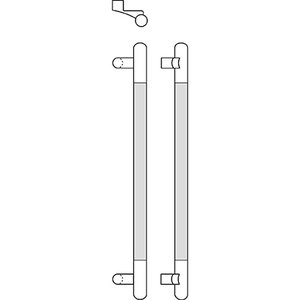

RM3430 - offset pull, round ends

1" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

RM3431 - offset pull, round ends

1-1/4" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

RM3432 - offset pull, round ends

1-1/2" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

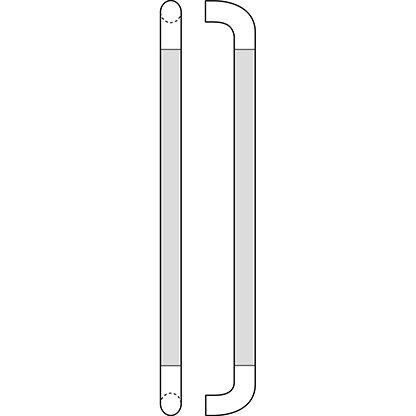

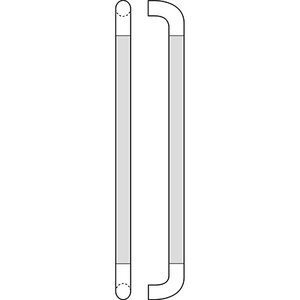

RM3440 - straight pull, bent ends

1" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

RM3441 - straight pull, bent ends

1-1/4" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

RM3442 - straight pull, bent ends

1-1/2" diameter

36" to 96" CTC

Over 96" on select finishes

Specify overall length

NeoMax Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the NeoMax Collection are stainless steel, brass or bronze.

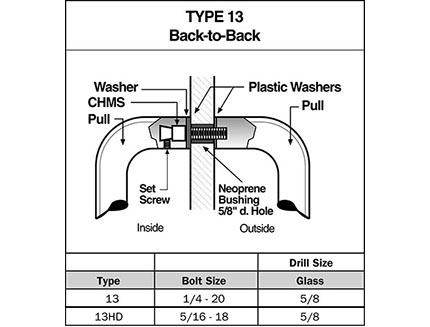

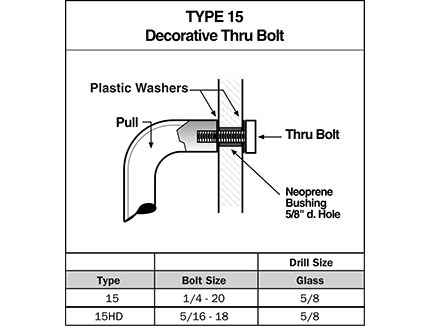

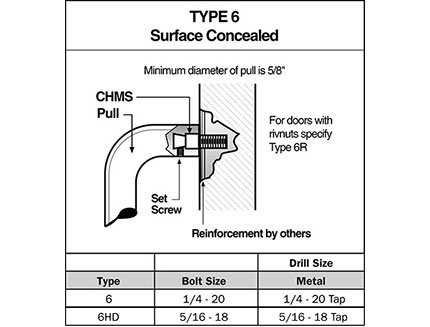

Rockwood Door Pulls – Mounting Types

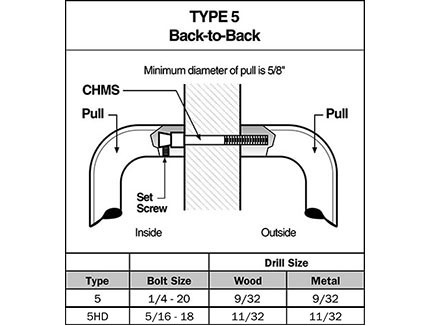

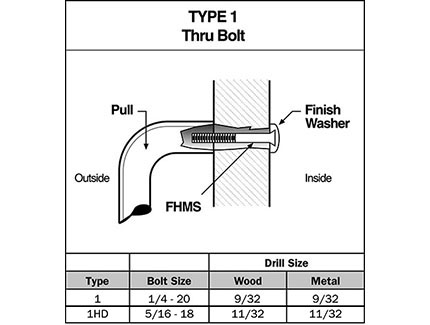

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Options:

For optional mid-post, suffix the product number with “MP” (example: RM3401MP).
Over 96" available on select finishes.

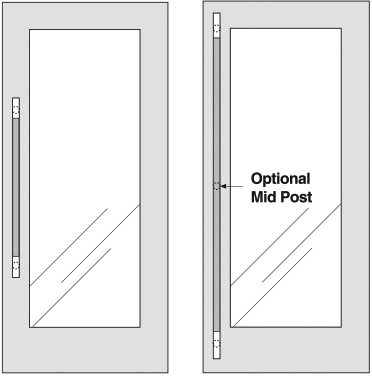

Application Suggestions

Straight Long Pull - Square Ends

RM3400 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3401 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3402 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

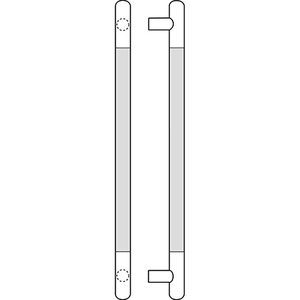

Straight Long Pull - Round Ends

RM3420 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3421 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3422 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Offset Long Pull - Square Ends

RM3410 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3411 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3412 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Offset Long Pull - Round Ends

RM3430 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3431 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3432 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Straight Long Pull - Bent Ends

RM3440 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3441 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32316 ; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3442 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
