Paired Panels STC 55

Moduflex operable walls are overhead-supported movable wall panels designed for space maximization and sight and sound barriers.

Moduflex® Series 800 by Panelfold®

Moduflex® Series 800 full 4" (102mm) thick steel operable walls are designed for the most demanding performance criteria.

Durable steel panel faces are welded to 14-gauge steel frames in a unibody construction.

Model 820 Paired Panels for
Straight-Line Openings

Moduflex® Model 820 operable walls have panels hinged in groups of two: each panel supported by radial type, steel ball-bearing wheels, which allow convenient, manual operation and center stacking. Heights to 22'0" (6850mm).

Specifications

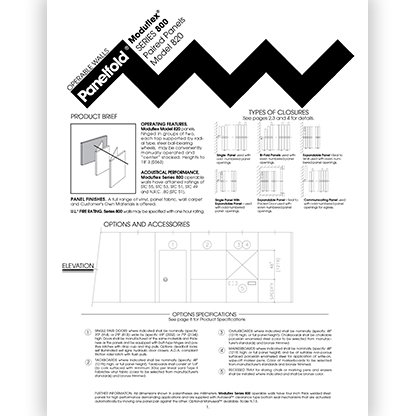

Downloads

Moduflex® Series 800 Specifications & Features

Moduflex® Series 800 full 4" (102mm) thick steel operable walls are designed for the most demanding performance criteria. Durable steel panel faces are welded to 14-guage steel frames in a unibody construction.

The following lists some common features and available operations of Series 800 operable walls:

Walls available to 60' (8535mm) high.
Acoustically rated to Sound Transmission Class (STC) 55.
Class A flame spread rating.
Standard Sheer Look® wrap-around panel edges.
Optional additional protective edge-of-face trim available for those customers who prefer extra edge protection.
Strong, protective, universally interlocking framing astragals on both panel edges of every model made of steel for extra impact strength.
Astragals are self-mating, deep-nesting, labyrinth-style with sound seals spaced far apart for optimum acoustical performance.
Continuous horizontal top and bottom seals.
Quiet, smoooth, aluminum track systems with integral metal soffits.
Solid, sturdy, acoustically-tight, adjustable pass doors.
All panels are unitized for torsional rigidity and acoustical tightness.
Electric operation with SafetyFlex™ safety devices.

Moduflex® Model 820 Product Features:

Sound absorption ratings to NRC .80
Optional U.L.® 1 Hour fire rating
Sound Transmission Class ratings to STC 55
Unspliced four inch (102mm) thick welded steel panels
Available to 22 feet (6850mm) high
Moduflex® Model 820 operable walls have panels hinged in groups of two, each panel supported by radial type, steel ball-bearing wheels, which allow convenient, manual operation and center stacking. Heights to 22'0" (6850mm).

ACOUSTICAL PERFORMANCE: Moduflex® Series 800 operable walls have attained ratings of STC 55, STC 53, STC 51, STC 49; and an NRC .80 on STC 51 panels.

Panelfold Innovative Space Division Systems

Panelfold has long been recognized as the innovative leader in the folding door, acoustical accordion folding partition and the operable and relocatable wall industry. Panelfold products are available in a variety of colors, textures, wood veneers, decorative laminates and work surfaces, meeting the highest criteria of design specifications.

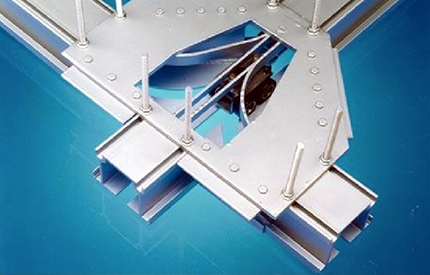

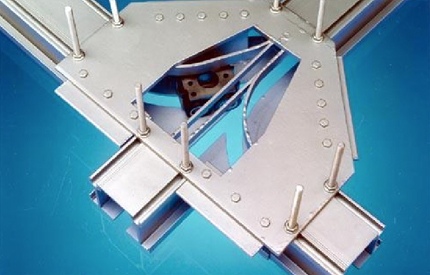

Panelfold PreProgrammed™ Diverter System

Panelfold continues to have the most advanced and versatile programmed track and carrier technology in the world. The advantages of Pre‐Programmed™ track systems, which include reduced “set‐up” and “take‐down” time as well as less operator fatigue, result in greater owner satisfaction every time.
